Top Buttons Mode
Use Top Buttons Mode to select the behavior of the camera's Top Buttons.
The Top Buttons modes include:
|
Items |
Details |
|---|---|
|
Enable the normal SEL button behavior |
|
|
Enable the Function SEL button behavior |
|
|
Lock the LCD and Top buttons |
Select
Use Select to enable the normal SEL button behavior for selecting Onboard LCD Menu page items, and to disable the Function mode SDI overlay behavior.
Function

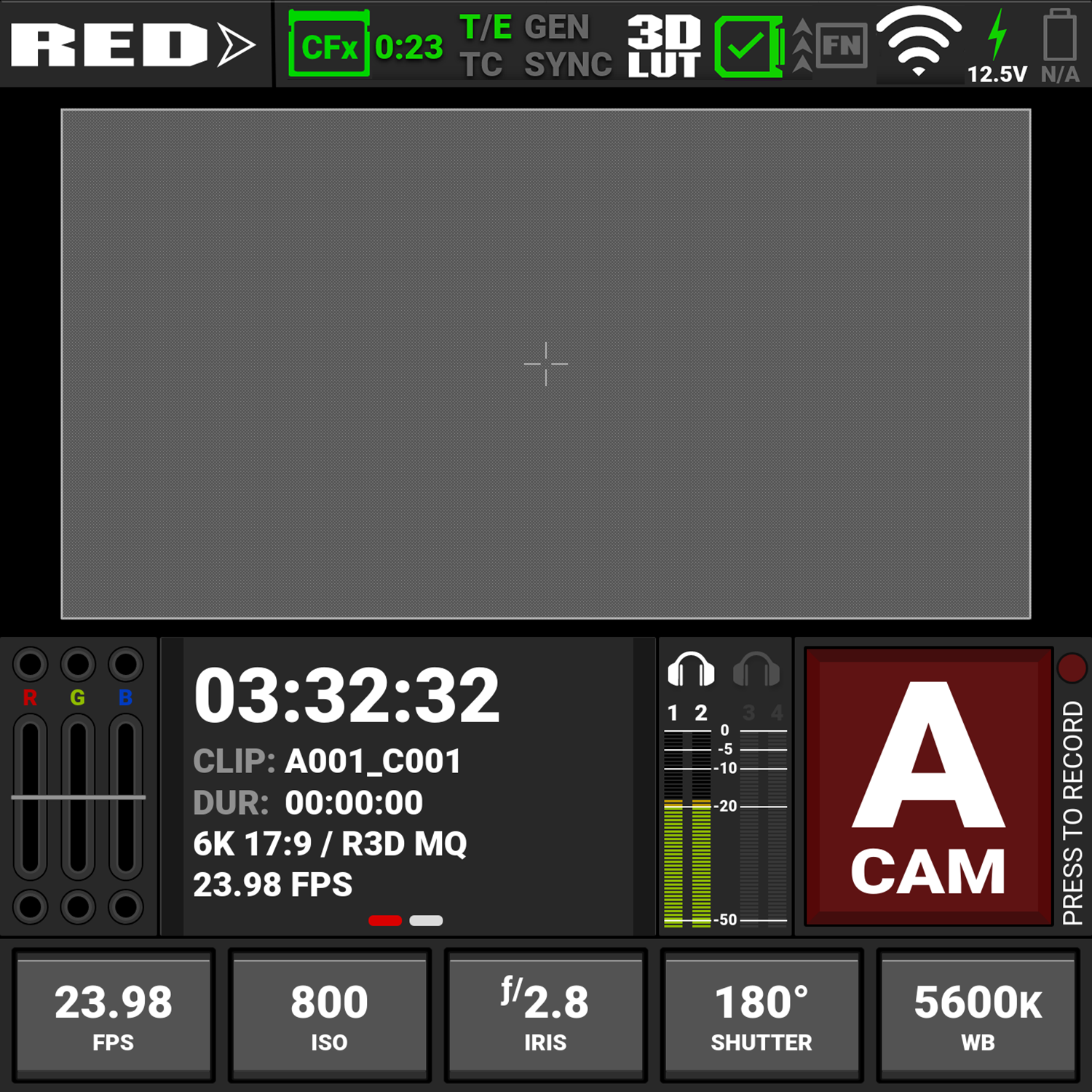

Use Function to enable the SDI Overlay Function option for the SEL button. When you enable the Function mode, the
icon displays on the User Page or Preview Page status bar.
The Function mode of the SEL button allows you to cycle through the top SDI overlay values (when not on the camera Menu page), and adjust the values. You can use the Up top button (FN up) and the Down top button (FN down) to adjust the values.
NOTE: You must attach an SDI monitor or Top EVF, select an overlay with top values, and enable Tools, to fully enable the Function mode.
When Function is fully enabled, the
icon displays on the User Page or Preview Page status bar.
When you are using the Menu page, the Select button behavior is enabled and the
icon displays in the Status Bar.
For more information, refer to Top Buttons Function Mode in the How To section.
